VERTICAL PANEL SAW SVP145, Autom. Shifting Frame, Lift-Up Rollers, Cut mm. 4200×2200, Engraving group with 2 coupled blades

VERTICAL PANEL SAW SVP145, Autom. Shifting Frame, Lift-Up Rollers, Cut mm. 4200×2200, Engraving group with 2 coupled blades

SKU: SVP/145

Description

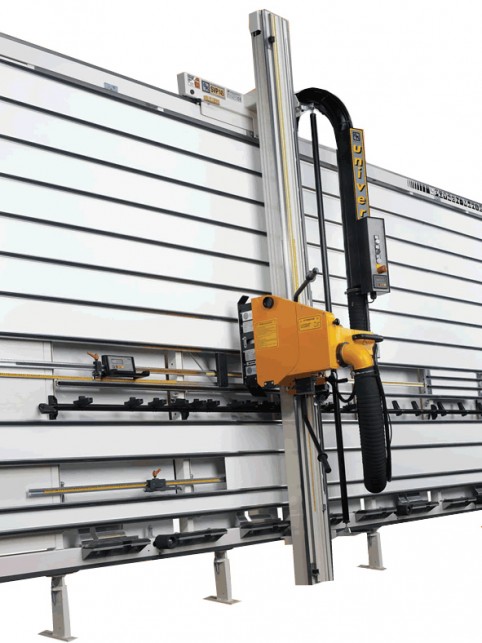

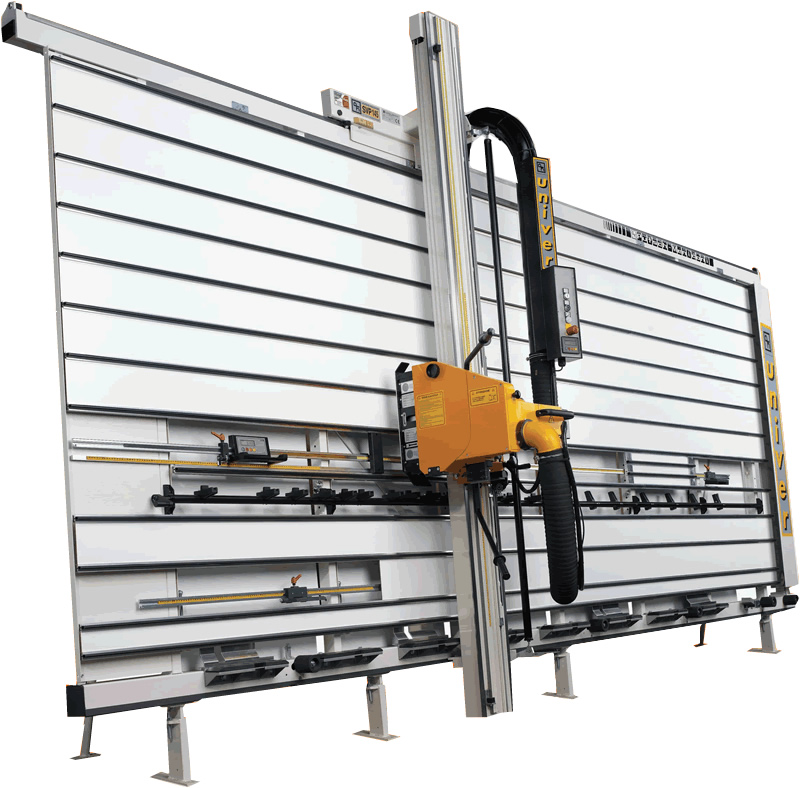

VERTICAL PANEL SAW Mod. SVP-145. CE.
Automatic shifting frame Electric + Lift-up rollers. Cut mm. 4200×2200. Engraving group with 2 coupled blades
These are vertical panel saws responding to all cutting requirements and offering the best value for money. Thanks to a wide range of accessories, these machines guarantee performances that are typical of higher-category equipments and increase profitability.
The Vertical Panel Saw can cut the following materials:
– Chipboard
– Faced chipboard
– Multistratum
– Solid wood
– MDF
– Plexiglass
– Polycarbonate
– Plastic materials
– Composite panels, sandwich type (Alucobond, Etalbond, Reynebond, Dibond etc..)
– CORIAN
For cutting in vertical and horizontal position.
Heavy duty machine assuring strength with a welded steel frame.
Automatic shifting frame to avoid the cutting of the plastic strips during the horizontal cuts.
Bottom aluminium supports with phenolic soles, for a safe support of the panels, and with Lift-up Rollers for a better sliding of the same.
Manual displacement of the beam and saw carriage for horizontal and vertical cuttings; these last are assured in N. 5 fixed points locking to the frame.
Manual plunging and returning of saw carriage, by means of ergonomic lever.
-Automatic shifting frame: ELECTRIC.
-Engraving group with 2 coupled blades
-Short piece cutting device.
-Integrated dust exhauster with bag.
-N. 4 positioners for horizontal cuttings.
-N. 2 Stops for vertical cuttings.
-Lift-up rollers.
-SELF-BRAKING motor.
-All standard accessories: safety device, soundproofing, set service tools, user?s manual.

TECHNICAL DETAILS:
Max. length of cut :mm 4200
Max. height of cut :mm 2200
Max. height of horizontal cut :mm 2080
Max. depth of cut :mm 60
Motor output :HP 4 (Kw 3)
Blade diameter :mm 250
Blade speed :rpm 5300
Volt.380-400/50 (Upon request also Special Voltages)
Overall sizes mm.5600x1700x3150 (h)
Beam package mm.3100x1130x1150 (h) / weight kg.500
Frame package mm.5610x220x2350 (h) / Weight kg.495

THE MACHINE CAN BE SUPPLIED ALSO WITH LENGTH MM.3200 (WITHOUT NO ADDITIONAL COST).
