Description

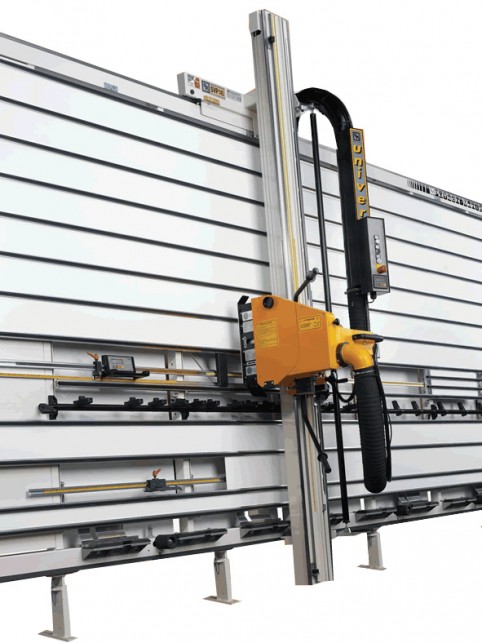

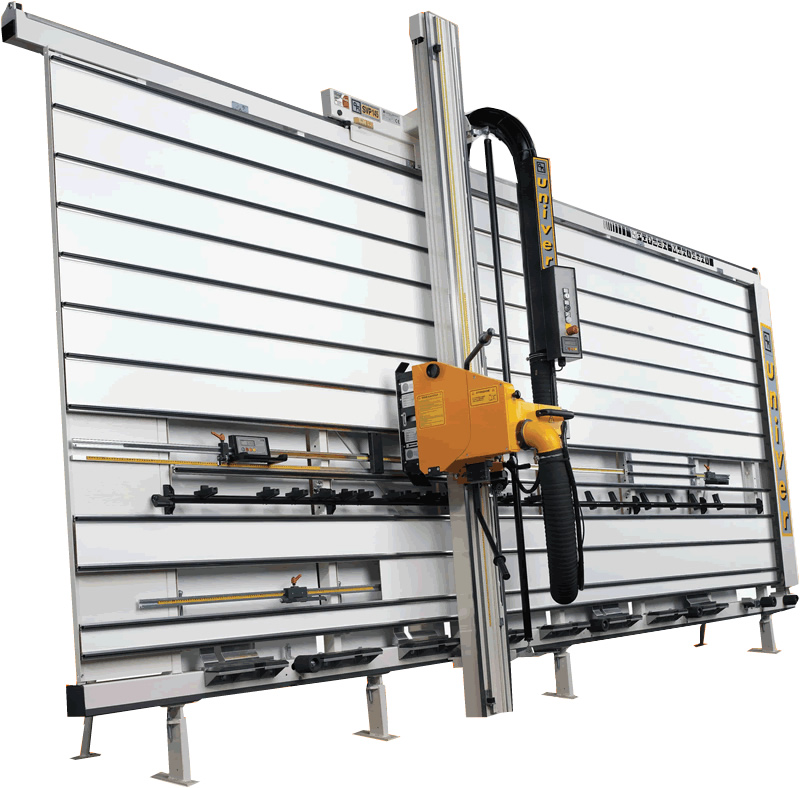

VERTICAL PANEL SAW Mod. SVP/133-R. CE.
Automatic shifting frame Pneumatic. Cut mm. 3200×1900. Engraving group with 2 coupled blades
These are vertical panel saws responding to all cutting requirements and offering the best value for money. Thanks to a wide range of accessories, these machines guarantee performances that are typical of higher-category equipments and increase profitability.
The Vertical Panel Saw can cut the following materials:
– Chipboard
– Faced chipboard
– Multistratum
– Solid wood
– MDF
– Plexiglass
– Polycarbonate
– Plastic materials
– Composite panels, sandwich type (Alucobond, Etalbond, Reynebond, Dibond etc..)
– CORIAN
For cutting in vertical and horizontal position.
Heavy duty machine assuring strength with a welded steel frame.
Automatic shifting frame to avoid the cutting of the plastic strips during the horizontal cuts.
Heavy duty base with 15 aluminium free rollers to ease the displacement of panels.
Manual displacement of the beam and saw carriage for horizontal and vertical cuttings; these last ones are assured in N. 4 fixed points locking to the frame.
Manual plunging and returning of saw carriage, by means of ergonomic lever.
-Automatic shifting frame: PNEUMATIC.
-Engraving group with 2 coupled blades
-Short piece cutting device.
-Integrated dust exhauster with bag.
-N. 4 positioners for horizontal cuttings.
-N. 2 Stops for vertical cuttings.
-N. 15 aluminium free rollers.
-SELF-BRAKING motor.
-All standard accessories: safety device, soundproofing, set service tools, user?s manual.

TECHNICAL DETAILS:
Max. length of cut :mm 3200
Max. height of cut :mm 1900
Max. height of horizontal cut :mm 1700
Max. depth of cut :mm 60
Motor output :HP 4 (Kw 3)
Blade diameter :mm 250
Blade speed :rpm 5300
Volt.380-400/50 (Upon request also Special Voltages)
Overall sizes mm.4550x1600x2750 (h)
Beam package mm.3100x1130x1150 (h) / weight kg.490
Frame package mm.4600x220x2000 (h) / Weight kg.350
