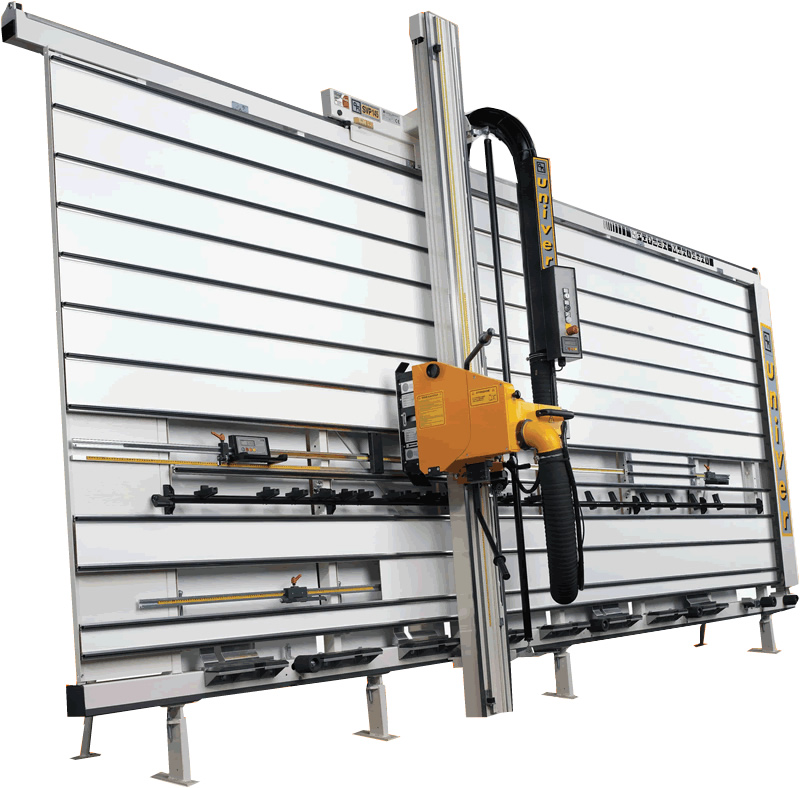

VERTICAL PANEL SAW mod. SVP/133. CE.
Automatic shifting frame Electric. Cut mm. 3200×1900. Engraving group with 2 coupled blades
These are vertical panel saws responding to all cutting requirements and offering the best value for money. Thanks to a wide range of accessories, these machines guarantee performances that are typical of higher-category equipments and increase profitability.
The Vertical Panel Saw can cut the following materials:
– Chipboard
– Faced chipboard
– Multistratum
– Solid wood
– MDF
– Plexiglass
– Polycarbonate
– Plastic materials
– Composite panels, sandwich type (Alucobond, Etalbond, Reynebond, Dibond etc..)
– CORIAN
For cutting in vertical and horizontal position. Heavy duty machine assuring strength with a welded steel frame.
Automatic shifting frame to avoid the cutting of the plastic strips during the horizontal cuts.
Bottom aluminium supports with phenolic soles, for a safe support of the panels, and with Lift-up.
Rollers for a better sliding of the same.
Manual displacement of the beam and saw carriage for horizontal and vertical cuttings; these last are assured in N.4 fixed points locking to the frame.
Manual plunging and returning of saw carriage, by means of ergonomic lever.
-Automatic shifting frame: ELECTRIC.
-Engraving group with 2 coupled blades
-Short piece cutting device on all the length of the machine
-Integrated dust exhauster with bag.
-N. 4 positioners for horizontal cuttings.
-N. 2 Stops for vertical cuttings.
-Lift-up rollers.
-SELF-BRAKING motor.
-All standard accessories: safety device, soundproofing, set service tools, users manual.

TECHNICAL DETAILS:
Max. length of cut :mm 3200
Max. height of cut :mm 1900
Max. height of horizontal cut :mm 1700
Max. depth of cut :mm 60
Motor output :HP 4 (Kw 3)
Blade diameter :mm 250
Blade speed :rpm 5300
Volt.380-400/50 (Upon request also Special Voltages)
Overall sizes mm.4550x1600x2750 (h)
Beam package mm.3100x1130x1150 (h) / weight kg.490
Frame package mm.4600x220x2000 (h) / Weight kg.350
