AUTOMATIC SINGLE-HEAD CUTTING OFF MACHINE
mod. XERON FOR SERIES CUTS WITH AUTOMATIC PIECE
FEEDING DEVICE – AS PER E.C. RULES

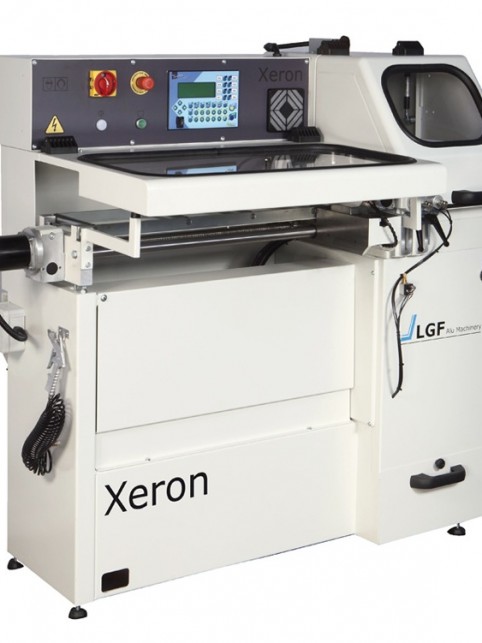

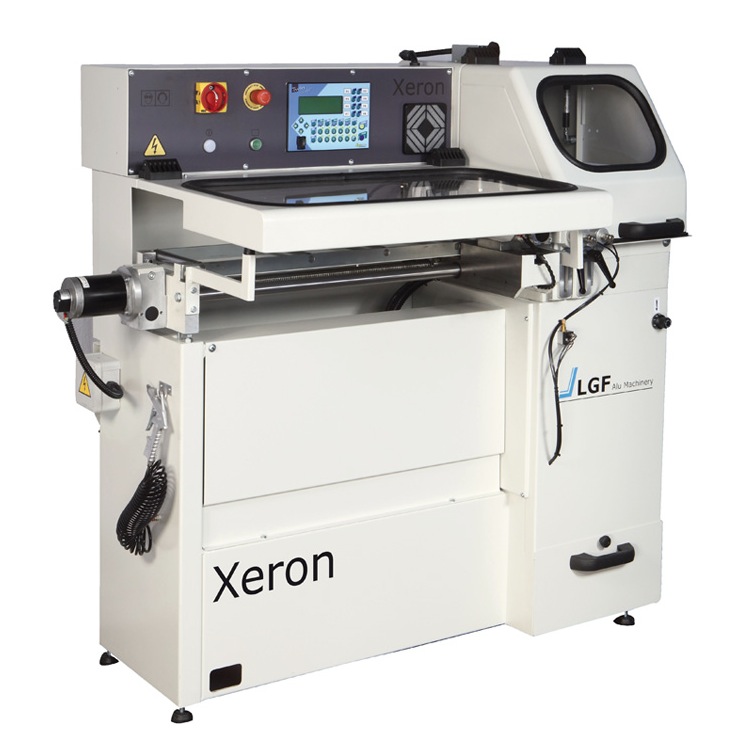

AUTOMATIC SINGLE-HEAD CUTTING OFF MACHINE mod. XERON
FOR SERIES CUTS WITH AUTOMATIC PIECE FEEDING DEVICE – AS PER E.C. RULES

TECHNICAL DATA

Pendular movement of the blade group
TCT saw blade diam. 450 mm.
Blade exit through oleo-pneumatic cylinder
Three-phase motor 3 HP 2800 r.p.m.
Blade Shaft diameter 30 mm.
Radial sliding of the blade unit
Min. working pressure 7 bar
Blade cut adjustement
Overall dimensions: 850x1500x1450 mm.
Weight: 220 kg.

STANDARD EQUIPMENT

TCT saw Blade diam. 450 mm.
Pneumatic clamps
Pneumatic spray mist lubrication
Integral protection of the blade
Exhaust attachment
Automatic bar feeder adjustable from 0 up to 660 mm.
Air filter
Air gun
Service spanners
