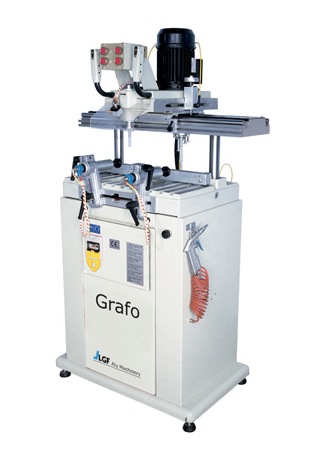

SINGLE-HEAD COPY ROUTER mod. GRAFO
FOR PASSING-THROUGH OPERATIONS – AS PER E.C. RULES

SINGLE-HEAD COPY ROUTER mod. GRAFO
FOR PASSING-THROUGH OPERATIONS – AS PER E.C. RULES

TECHNICAL FEATURES

3-phase motor 1,5 HP 2800 r.p.m.
Spindle revolutions 14.000 r.p.m.
Vertical stroke 160 mm.
Lengthwise stroke 120 mm.
Transversal stroke 565 mm.
Min. working pressure 7 bar
Overall dimensions: 820x570x1290 mm.
Weight: 130 kg.

STANDARD EQUIPMENT

Nr. 1 copy template
Nr. 2 pneumatic tracer points with 2 different diameters
Pneumatic vices
Automatic movement of the head
Automatic lubrication
Depth stop with 6-position stop
Air filter
Air gun
Nr. 1 tool
Pliers diam. 8 mm.
Profile stops
Service spanners
