CUTTING AND ENGRAVING MACHINE
“NORMAPROFIL”series mod. T-2512 – As per E.C. rules

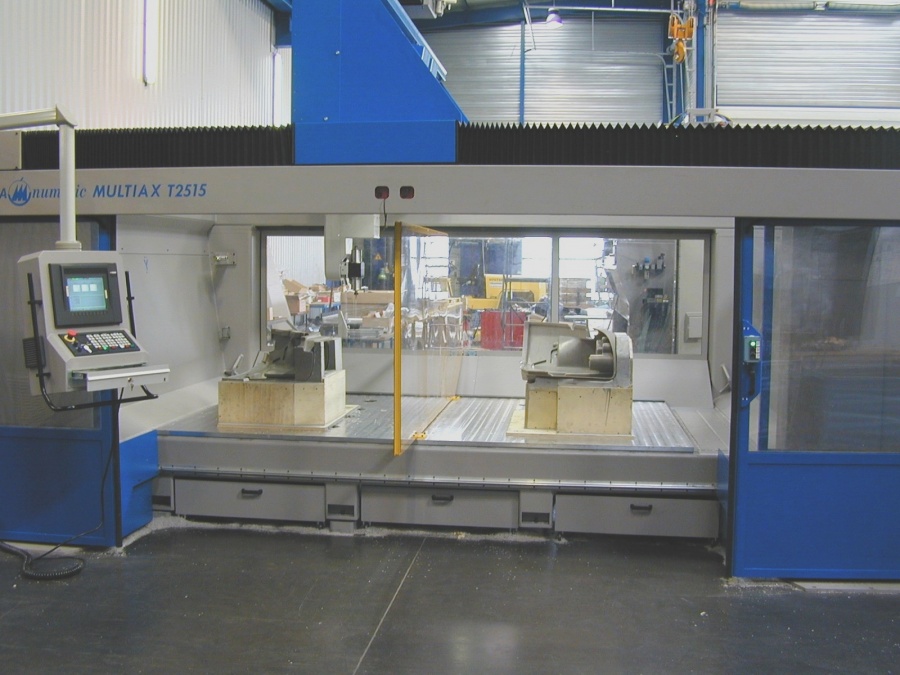

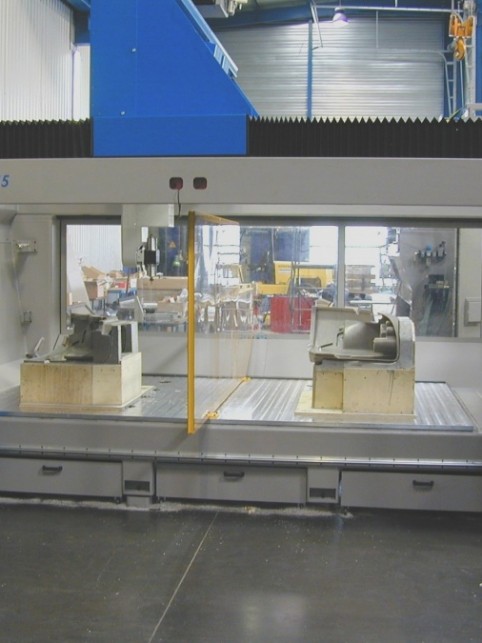

CUTTING AND ENGRAVING MACHINE “NORMAPROFIL” series
mod. T-2512 – As per E.C. rules
The NORMAPROFIL series is a line of 5-axis equipments, for workings of light materials, like:
plastic, composites, resins, foams and light alloys.
The frame has a mobile arm for the 3 linear axis, X, Y, Z and 2 rotative ones (B, C)
that allow the cutting head positioning.
Such equipments are perfectly suitable for realization of molds or models
for thermo-molding, but even for 3D workings of any shape.
DESCRIPTION
Structure: high inertia steel welded frame and gantry
Table top: aluminium fixed table with martyr coating or phenolic resin table.
Guidance: prismatic guides
Transmission: endless screw on 3 axis with double screw pinion/rack for the X-axis.
Motorization: Brushless servo-motors
FEATURES
– quick feeding speed: from 24 to 36 mt/min.
– mechanical resolution: 0,002 mm.
– re-positioning precision: 0,06 mm.
– motorization: Brushless servomotors
– mechanical transmission through endless screw and ball-blowing bears.
TECHNICAL DATA
– X-axis stroke mm. 3100
– Y-axis stroke mm. 1800
– Z-axis stroke mm. 750
– Max. sizes of the pieces to be worked: not available
– max. speed 625 mm/sec
– resolution 0,002 mm.
– repeatibility in mm. at 20° C +/- 2° ± 0,06
– overall dimensions: not available
– medium weight: n.a.
FEEDING
Pneumatic feeding – Pressure: 6 bar / Delivery from 6 to 40 mc/h
Electric feeding: 3-phase 400 V 50 Hz + ground – Power according to configurations
NUMERICAL CONTROL
– Numerical control SIEMENS SINUMERIK 840DI: axis X, Y, Z, C, A.
**Colour screen: STN 10.4 inches OP010.
**Brushless motorization type 1FK7 with numerical variators.
**Air-conditioned electric box.
– Numerical control SIEMENS SINUMERIK 840DI: axis X, Y, Z, C, A.
**Colour screen: STN 10.4 inches OP010.
**Brushless motorization type 1FT6 with numerical variators.
**Air-conditioned electric box.
– Numerical DIGITAL control “NUM 1050”: axis X, Y, Z, C, A.
**Flat screen TFT 12 inches.
**Operator’s keyboard: MP03.
**Brushless motorization type BPH with numerical variators.
**Air-conditioned electric box.
OPTIONS AND ACCESSORIES
– 2V250 (2 vacuum pumps 250 m3/h 4,5 kW)
– LUB 2/6 (tool cooling – soluble oil vaporization)
– AIRGEL (tool cooling by frozen air)
– ASP (professional chips suction unit 2.2 / 4 or 7.5 kW)
– ASPCYCL (cyclonic pre-filtering + tank 100 lts.)
– Automatic tool replacement with static 5-tool store
