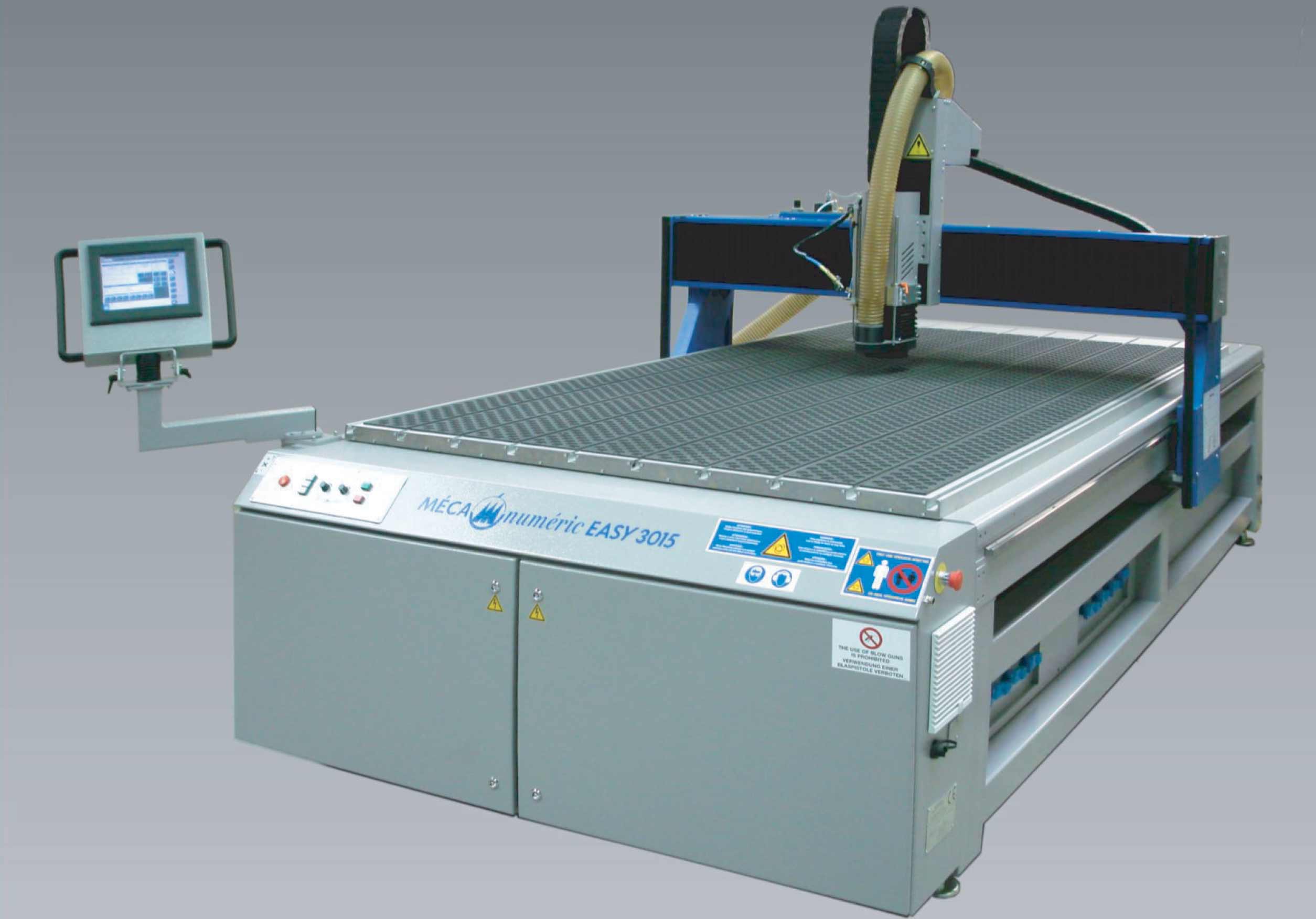

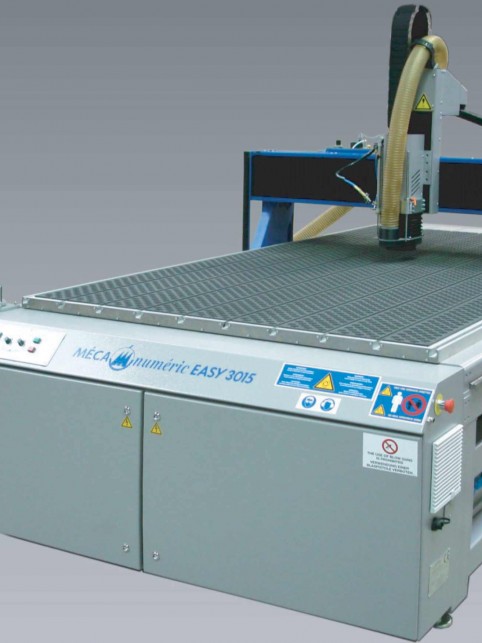

DESCRIPTION

Structure: high inertia steel welded frame and gantry
Table top: fixed table in aluminium section bars
Guidance: grinded steel rails and preloaded ball bearings
Transmission: high precision ball screw on all axes
Motorization: AC Brushless servo motors, 750 W

Mecaeasy is composed by 6 models with sizes: 1500×3000 mm., 2000×3000 mm.
These models are divided into 4 dedicated categories:
BASIC
ENTRY
ATC
DGP. The DGP, “Digital Printing Solutions”, range is equipped, besides with professional milling chucks, even with a multi-function head group that allows the installation of vibrating heads, Tangentials and optycal readers for cutting printed materials. A new solution within everybody’s reach.

TECHNICAL DATA

– X-axis stroke mm. 3050
– Y-axis stroke mm. 1520
– Z-axis stroke mm. 200
– max. width of materials mm. 1790
– passage under gantry mm. 210
– max. speed 300 mm./sec.
– resolution en mm. 0,0015
– repeatibility at 20°C in mm. 0,05
– numerical control: CN 7000
– interface: touch screen 10,4
– overall dimensions mm. 150 x 2050 x 2100
– weight kg. 2150

BASIC VERSION

Electrochuck 2,2 kW – 24000 r.p.m.
Tool length measuring device
Vacuum table – 2 pumps 2,2 kW – 8 zones
Average power supply 1 x 230V
Average intensity 25A

ENTRY VERSION

Electrochuck 4,2 kW – 24000 r.p.m.
Tool length measuring device
Vacuum table – 2 pumps 2,2 kW – 8 zones
Automatic aspirating outlet
E.C. Certification
Average power supply 3 x 400V
Average intensity 3 x 25A

VERSIONE ATC

Electrochuck ATC 2,5 kW – 24000 r.p.m.
Automatic tool change with static 6-tool shop ISO25
Tool length measuring device
Vacuum table – 2 pumps 2,2 kW – 8 zones
Automatic aspirating outlet
E.C. Certification
Average power supply 3 x 400V
Average intensity 3 x 25A

VERSIONE DGP

Electrochuck 4,2 kW – 24000 r.p.m.
Tool length measuring device
Vacuum table – 2 pumps 2,2 kW – 8 zones
Automatic aspirating outlet
2nd head for tangential control tool
E.C. Certification
Average power supply 3 x 400V
Average intensity 3 x 25A

ACCESSORIES

LUB 2 – tool cooling system
Automatic aspirating outlet
ASP 22 – industrial chips susction unit 2.2 kW (HP 3)
Tool shop cover
OPTISCOUT camera and registration software
Tangential vibrating knife to cut light materials
Tangential knife to cut thin and rigid materials
Tangential knife to cut light materials at 45°
Tangential knife to cut with disc knife very thin materials (textiles, paper …)
Tangential tool for V-groove wheel
