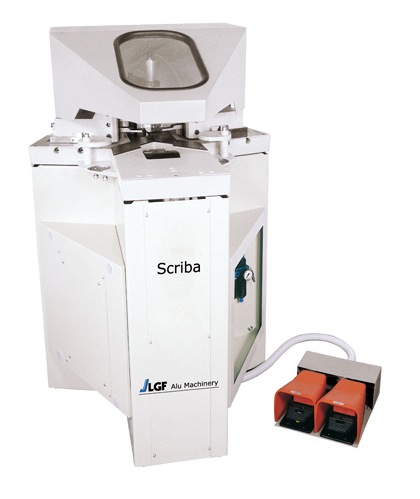

PNEUMATIC BEADER mod. SCRIBA FOR ANGLE JOINTINGS

suitable for all ranges of aluminium section bars

PNEUMATIC BEADER
mod. SCRIBA FOR ANGLE JOINTINGS

TECHNICAL FEATURES

Min. working pressure 7 bar
Max. working pressure 10 bar
Punching force 3500 kgp
Punch stroke 12 mm.
Max. punching height 100 mm.
Counter-support stroke 120 mm.
Punch lateral stroke 40 mm.
Overall dimensions: 1070x1250x1170 mm.
Weight 310 Kg.

STANDARD EQUIPMENT

Couple profile support arms
Control pedal
Nr. 1 pneumatic vertical vice
Nr. 1 Vice insert 30 mm.
Service spanners
