Description

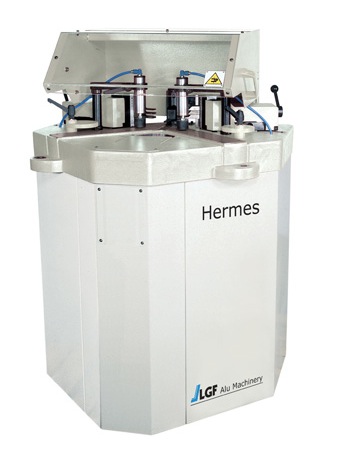

PNEUMATIC BEADER mod. HERMES FOR ANGLE JOINTINGS

suitable for all ranges of aluminium section bars

PNEUMATIC BEADER
mod. HERMES FOR ANGLE JOINTINGS

TECHNICAL FEATURES

Min. working pressure 7 bar
Max. working pressure 10 bar
Punching force 3500 kgp
Punch stroke 12 mm.
Max. punching heigth 100 mm.
Counter-support stroke 120 mm.
Punch lateral stroke 40 mm.
Overall dimensions: 1070x1250x1170 mm.
Weight: 310 kg.

STANDARD EQUIPMENT

Nr. 2 Punches 3 mm.
Nr. 2 Punches 5 mm.
Nr. 2 Punches 7 mm.
Nr. 1 Pair of profile suppor arms
Nr. 1 Control pedal
Nr. 1 Vice insert 20 mm.
Nr. 1 Vice insert 40 mm.
Nr. 2 Pneumatic vices
