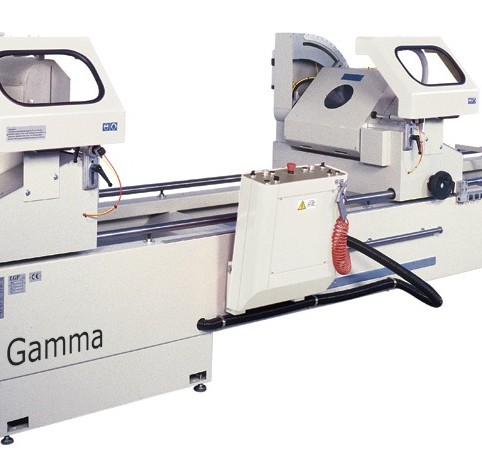

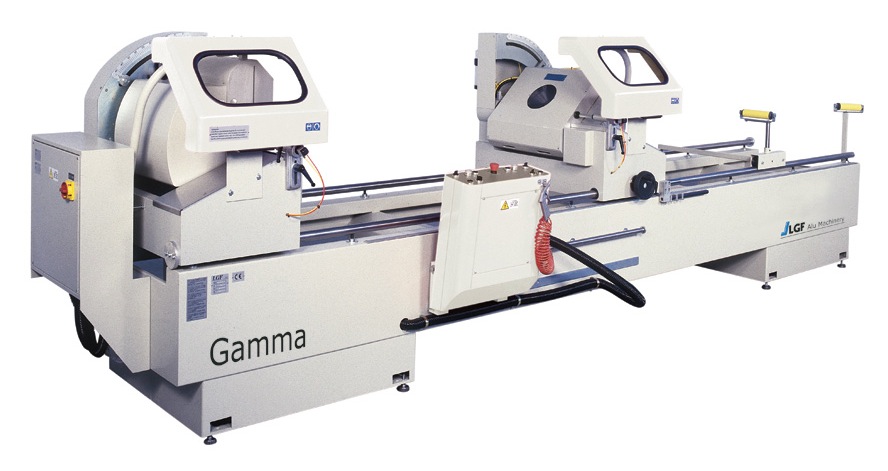

HALF-AUTOMATIC 2-HEAD CUTTING-OFF MACHINE
mod. GAMMA MX – AS PER E.C. RULES –
VERSION MM. 4000 (without pickup)
HALF-AUTOMATIC 2-HEAD CUTTING-OFF MACHINE
mod. GAMMA MX – AS PER E.C. RULES – VERSION MM. 4000 (without pickup)
TECHNICAL DATA
Manual movement of the right head by handwheel
Readout of positions through precision metrical rod
Pneumatic overturning of 2 heads 90-45 degrees
T.C.T. saw blades diam. 400 mm.
3-phase motors 2 HP 2800 r.p.m.
Blade shaft diameter 30 mm.
Head rotation 45/90/-45 degrees
Head tilting 45-90 degrees
Min. working pressure 7 bar
Overall dimensions: 1250x4900x1350 mm.
Weight: 1350 kg.
STANDARD EQUIPMENT
Air gun Pneumatic vertical vices
Pneumatic horizontal vices
Automatic lubrication
Nr. 2 T.C.T. blades diam. mm. 400
Central support
Blade protection
Service spanners
