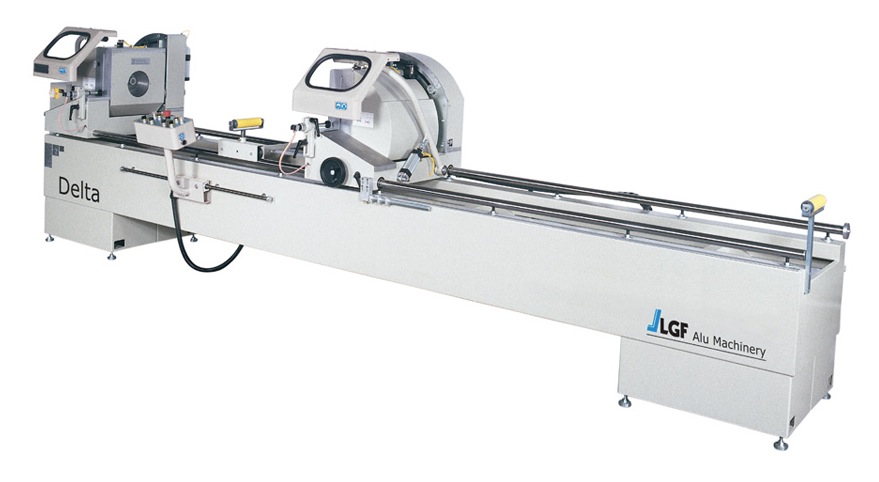

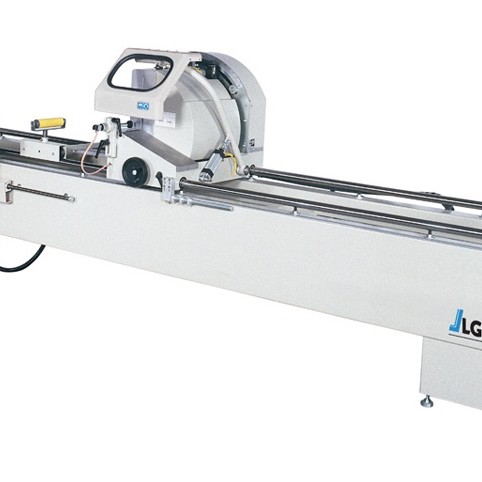

HALF-AUTOMATIC 2-HEAD CUTTING-OFF MACHINE
mod. DELTA – AS PER E.C. RULES –
CUTTING LENGTH MM. 4000 (without pickup)

HALF-AUTOMATIC 2-HEAD CUTTING-OFF MACHINE
mod. DELTA – AS PER E.C. RULES – CUTTING LENGTH MM. 4000 (without pickup)

TECHNICAL DATA

Movement of the mobile head by handwheel
Position readout through metrical precision rod
Automatic head tilting at +45/90 degrees
TCT saw blades diam. 400 mm.
3-phase motors 2 HP 2800 r.p.m.
Blade shaft diameter 30 mm.
Sliding movable head by ball bearings
Radial sliding of the blade unit
Min. working pressure 7 bar
Head tilting 90/-45 degrees
Overall dimensions: 4800x870x1350 mm.
Weight: kg. 750

STANDARD EQUIPMENT

Central support
Air gun
Pneumatic vices
Automatic lubrication
Protection of blades
Service spanners
