Description

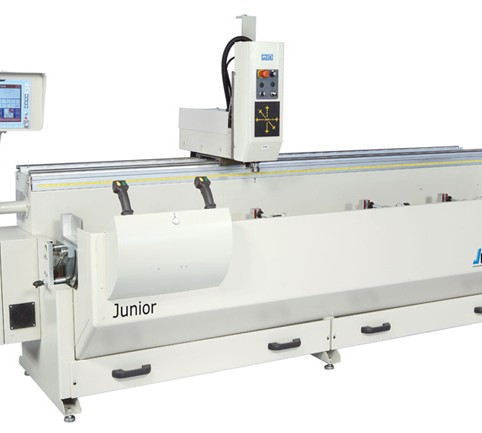

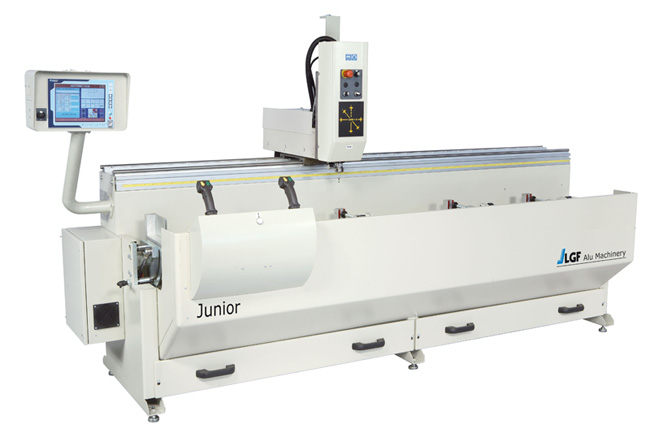

HALF-AUTOMATIC WORKING CENTER
mod. JUNIOR S.A. – AS PER E.C. RULES

HALF-AUTOMATIC WORKING CENTER mod. JUNIOR S.A. – AS PER E.C. RULES

TECHNICAL DATA

Particularly indicated for working on light alloys,
PVC and steel/inox tubulars, with new lever system.
Equipped with electro spindle with variable speed
Possibility of rotating the piece (0-90 degrees)
Working capacity mm. 2700x200x180
Overall dimensions: cm. 316x108x179
Weight: kg. 690

STANDARD EQUIPMENT

N. 4 pneumatic vices
Possibility of positioning the table on intermediate degrees
Adjustable speed from 0 to 12000 r.p.m.
2 HP 3-phase motor
Aumatic nebulizer
Nr. 1 spindle collet
Nr. 1 tool diam. 8 mm.
Profile stop
Air filter group
Air gun
Service spanners
